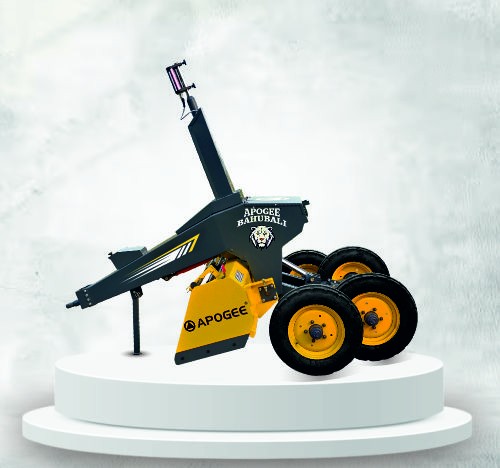

Bahubali Laser Land Leveller
Apogee’s Bahubali Zero Slope Laser Levelling Kit offers a complete precision farming solution. This integrated setup includes a robust Bahubali land leveller, high-accuracy laser receiver, rugged control panel, bucket scrapper, and long-range laser transmitter. Engineered for large-scale Indian farms, it ensures uniform land levelling, water savings, and increased yield.
Features & Advantages
- Apogee’s zero level laser leveller tool is designed for efficiency, which saves your precious time to focus on other essential farm tasks.
- This electronic kit includes various types of laser transmitters, laser receivers, and control boxes with different working ranges.
- It features specially designed buckets that guarantee proper soil cutting and handling.
- This type of laser guided land leveller helps to achieve unparalleled accuracy in land levelling and ensures a perfectly even surface for optimal crop growth.
- It positions you at the forefront of modern agriculture, ensuring that your farming practices align with the latest advancements.
- Invest in a tool that not only enhances productivity but also proves to be a cost-effective solution in the long run. Minimize the need for manual labour and reduce operational costs with our efficient land leveling kit.
Technical Specifications

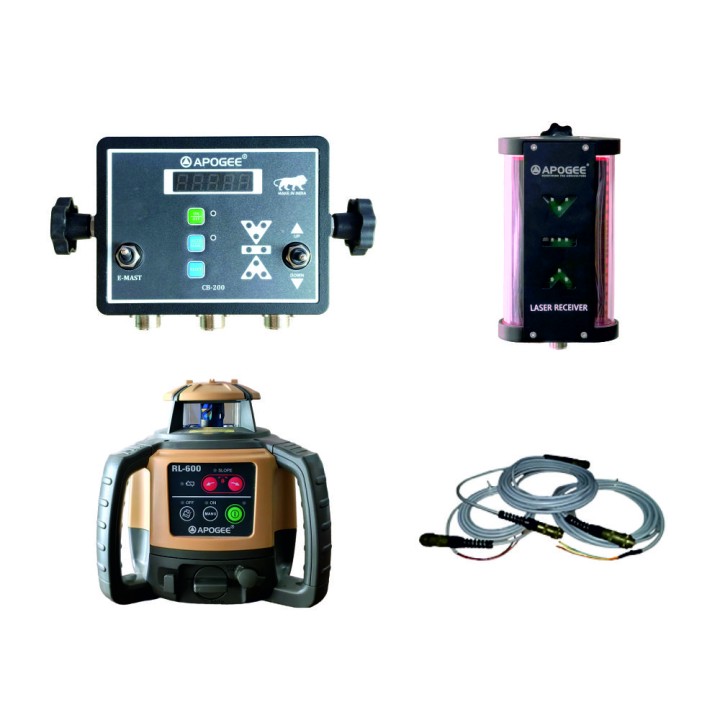

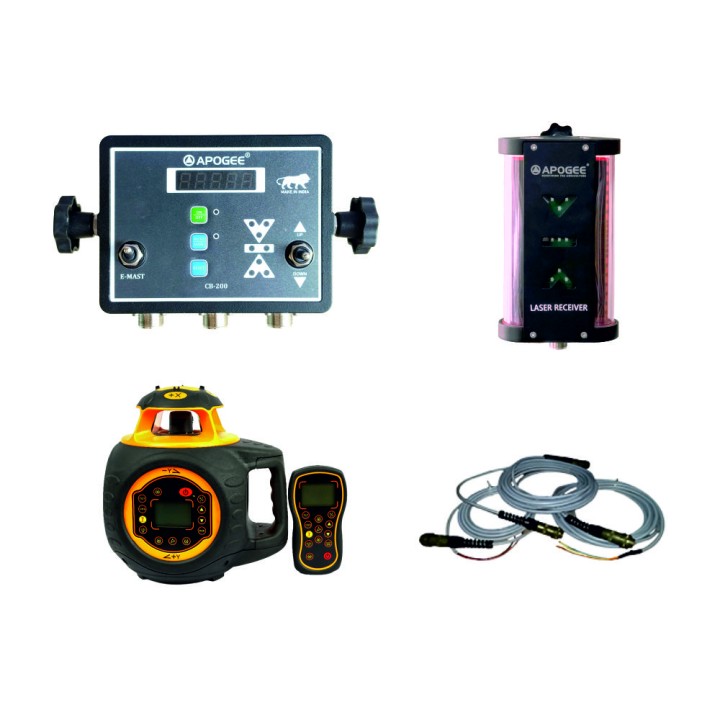

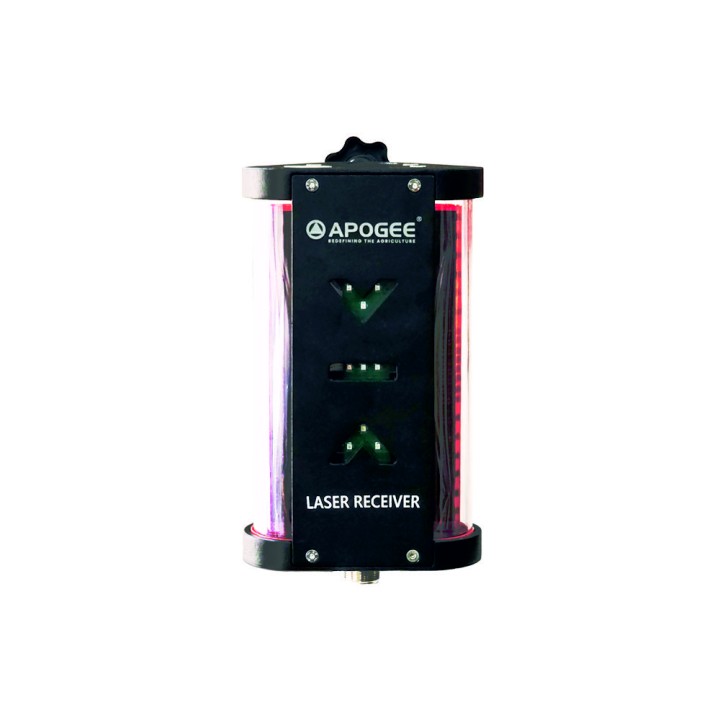

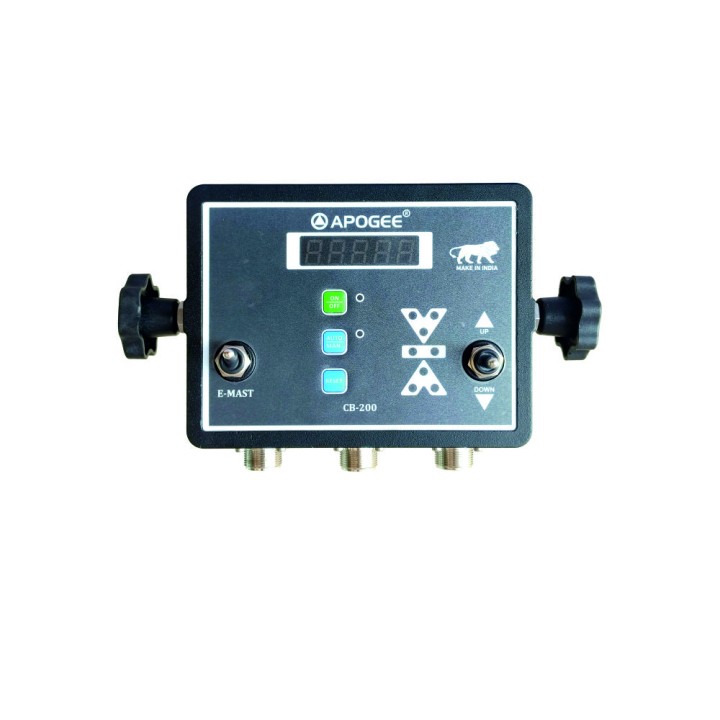

BAHUBALI BUCKET SCRAPPER | HD LASER RECEIVER | CONTROL BOX (CB 200) | LASER LEVEL TRANSMITTER | |

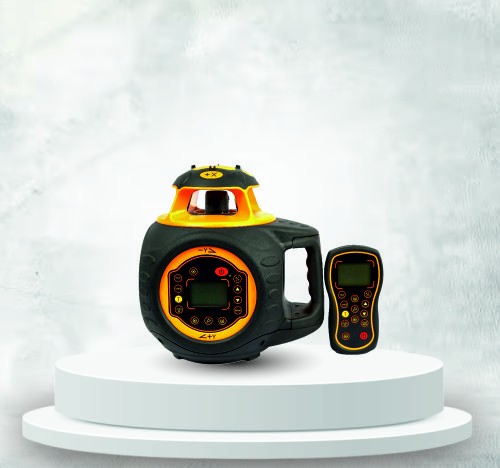

RL – 600 | D-31
| |||
Weight - 820 kg | Reception Range :360° | Operating Voltage:- 10-18 Volt DC | Accuracy: ±10 mm | Levelling Method:- Automatic Levelling |
Width - 7 feet | Reception Length : 200mm | Updated Technology | Self-levelling range: ±5° | Working Range - 600m |
Thickness - 8mm / 10 mm | Up/Down Indication LEDs | Ergonomic Design | Rotational Speeds: 600 r.p.m | Power – 12 V DC Battery |
Tractor Requirement - 40 HP and Above | Strong Dual Mounting | Heavy Mounting stand | Status Alerts – High & Low Battery | IP class – IP66 |
Tyres - 6-16 SL double | Glass Protection | Time Display | Operating Temperature -20 to 50°C (-4 to 122°F) | IP66 Resistant – Water and Dust
|
Mast – Power/Gear Mast (optional)
| Led Indication | Connection error messages | Size – 104(W)×127(D)×37(H)mm | Diode – Red |
BLADE Length- 84 inches
|
| Metal Body | Weight (Dry Battery Type): 2.3 kg (5.1 lbs with dry cell batteries) | Laser Wavelength – 635 nm |
BLADE Height - 127 mm
|
|
| Weight (Rechargable Battery Type): | Levelling method – Auto Levelling |
BLADE Thickness - 16 mm |
|
|
| Accuracy - ±0.05mm/m |
- |
|
|
| Output Lines – H-V |
- |
|
|
| Auto-Levelling Range - ±8° Size – 220x200x280m |
