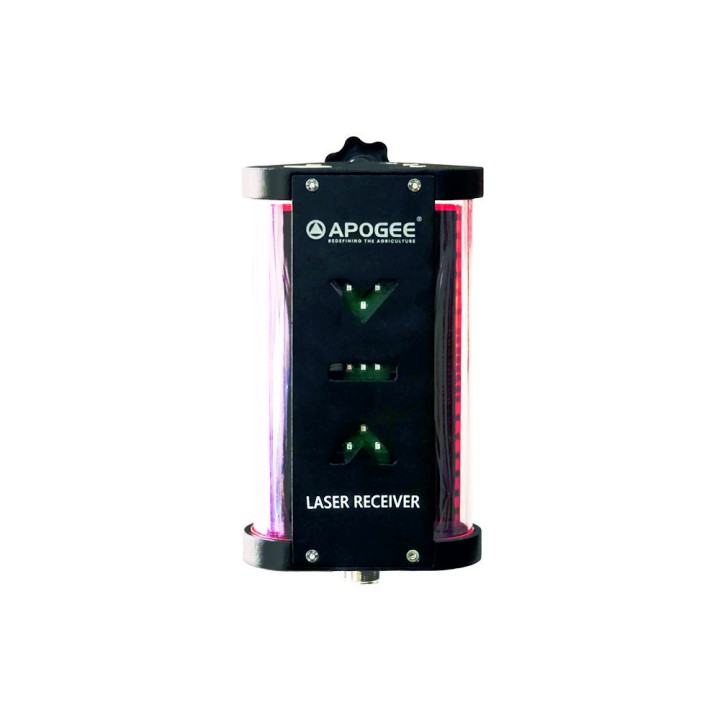

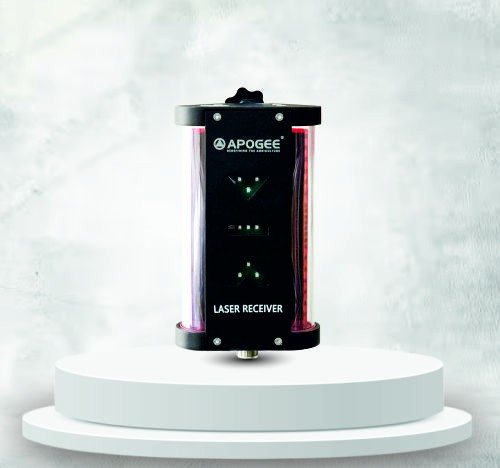

HD Receiver
Laser Receiver is mounted on the leveling bucket or scraper and detects the laser beam emitted by the transmitter. It detects the height of the laser beam and sends signals to the control box to adjust the hydraulic valve — ensuring the bucket maintains the correct cutting or filling position.
Features & Advantages
- Reception Range : 360°
- Reception Length : 200mm
- Up/Down Indication LEDs
- Strong Dual Mounting
- Glass Protection, Metal Covering
- Led Indication
Technical Specifications
The laser receiver is a sensor that detects the rotating laser beam from the transmitter (also called a rotary laser level) set up on a tripod. As the laser sweeps across the field, the receiver captures the beam and determines if the implement blade is above, below, or on the reference elevation. It then sends this height information to the control box, which adjusts the implement hydraulics to maintain precise grading.
