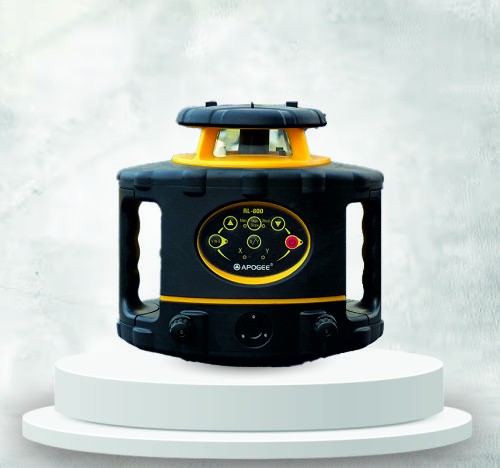

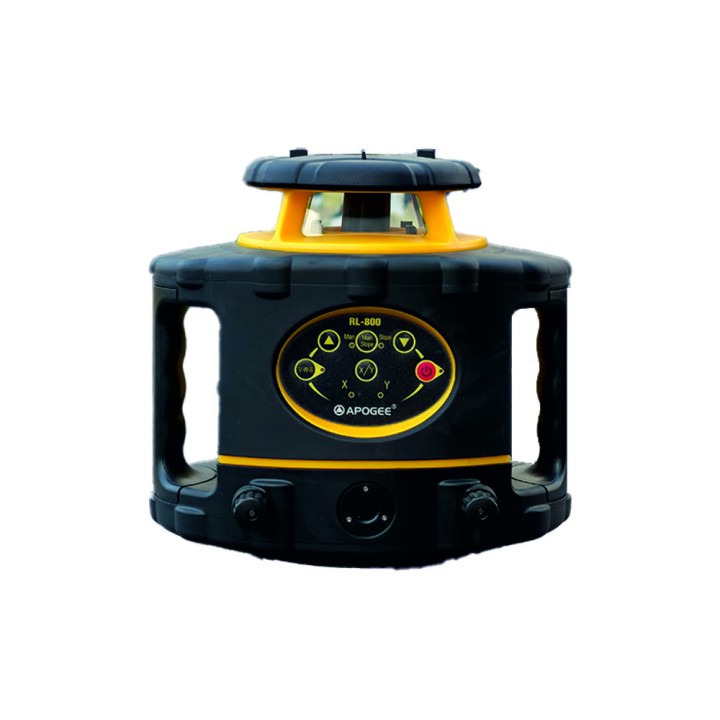

RL-800 Transmitter
Laser Transmitter emits a stable, 360° rotating laser beam that defines a perfectly level reference plane over the entire working area.
Features & Advantages
- Operating Range – 600m
- Rotation Speed – 600rpm
- Power – 12 V DC Battery
- IP class – IP66
- IP66 Resistant – Water and Dust
- Diode – Red
- Laser Wavelength – 635 nm
- Levelling method – Auto Levelling
- Accuracy - ±0.075mm/m
- Output Lines – H-V
- Auto-Levelling Range - ±5°
- Weight – 2.4 kg
- Size – 219x160x202mm
Technical Specifications
The laser transmitter emits a continuously rotating laser beam in a full 360° plane. A receiver mounted on the land leveller detects this rotating beam and sends height information to the control box. The control box automatically raises or lowers the land leveller blade to match the desired elevation relative to the transmitter’s reference plane. This enables accurate, automated land leveling across fields.
