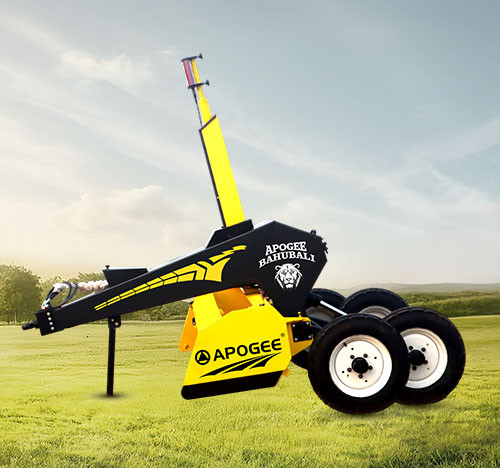

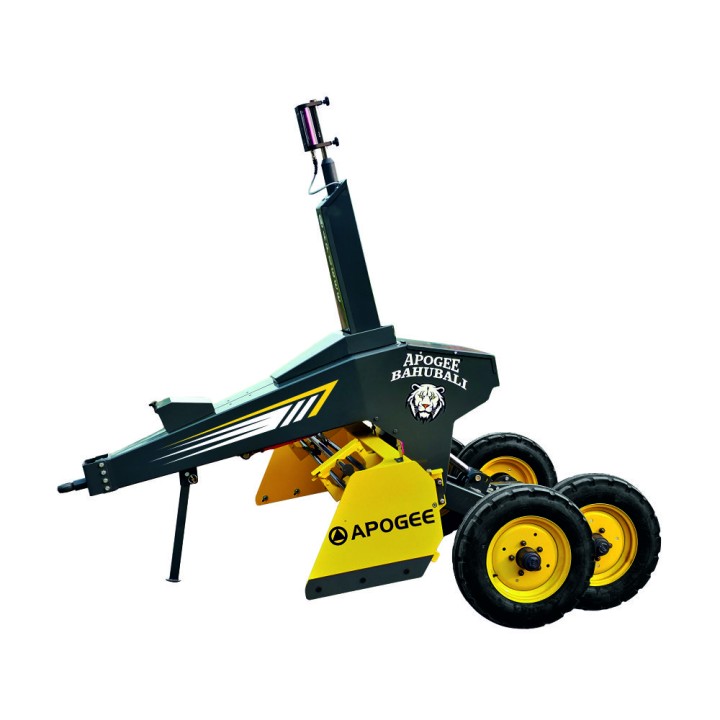

Dual-Slope-Bahubali-Laser-Land-Leveller
Dual Slope Bahubali Laser Land Levelling Kit from Apogee Agrotech is a robust and intelligent solution for precision land grading. It features the powerful Bahubali Dual Slope Leveller for accurate slope setting, a durable laser transmitter & receiver combo, a smart control panel, and a high-efficiency bucket scrapper – all designed for large-scale Indian farms. This advanced system helps improve crop productivity, reduce irrigation costs, and level land with dual-axis accuracy.
Features & Advantages
- Designed for tough field conditions and long operational life – ideal for all soil types.
- Levels the land in both forward and cross slope, ensuring efficient water drainage and field uniformity.
- Delivers centimeter-level accuracy for perfectly leveled fields – boosting seed placement and yield.
- Reduces the number of passes required, saving diesel and time during field preparation.
- Specifically built to suit Indian farming needs and tractor setups – robust & affordable.
- Optimized leveling reduces water wastage by up to 40% and enhances input efficiency.
Technical Specifications
|
BAHUBALI BUCKET SCRAPPER |
HD LASER RECEIVER |
CONTROL BOX (CB 200) |
D-31 DUAL SLOPE TRANSMITTER |
|
Weight - 820 kg |
Reception Range :360° |
Operating Voltage -10-18 Volt DC |
Levelling method - Automatic leveling |
|
Width - 7 feet
|
Reception Length :200mm |
Updated Technology |
Working range - 600m |
|
Thickness - 8mm / 10 mm |
Up/Down Indication LEDs |
Ergonomic Design |
Accuracy - ±0.05mm/m |
|
Tractor Requirement - 40 HP and Above |
Strong Dual Mounting |
Heavy Mounting stand |
Auto-levelling range - ±8° |
|
Tyres - 6-16 SL double |
Glass Protection |
Time Display |
Weight - 4Kg |
|
Mast – Power/Gear Mast (optional)
|
Metal Covering |
Connection error messages |
Size - 220×200×280mm |
|
BLADE Length- 84 inches
|
Led Indication |
Metal Body |
Power – 12 V DC Battery
|
|
BLADE Height - 127 mm
|
- |
- |
IP class – IP66 |
|
BLADE Thickness - 16 mm |
- |
- |
Output Lines – H-V |
|
- |
- |
- |
Laser Wavelength – 635 nm |
|
- |
- |
- |
Diode – Red |
