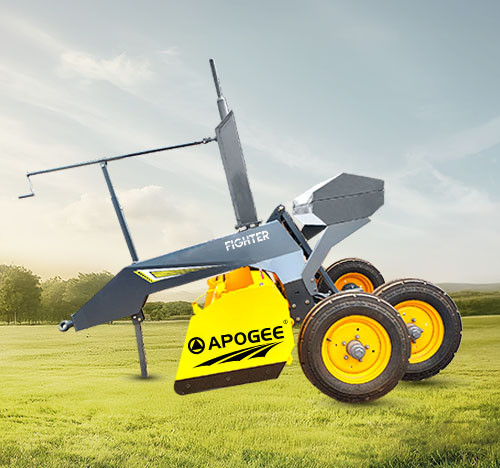

Dual Slope Fighter Laser Land Leveller
Apogee Dual Slope Fighter Laser Levelling Kit is a heavy-duty, high-precision agricultural solution. It combines Apogee’s powerful Fighter Land Leveller with intelligent dual slope laser guidance, a smart control panel, rugged scrapper, and reliable receiver/transmitter setup—perfect for complex field gradients and maximum water-saving land preparation.
Features & Advantages
- Engineered with dual-axis laser technology, this leveller enables precise creation of cross and longitudinal slopes—ensuring optimal drainage and advanced field grading.
- Features a broad levelling blade that reduces the number of passes required—speeding up operations and increasing field efficiency, ideal for large farms and contract work.
- The high-pressure hydraulic system ensures seamless blade control for slope adjustments, maintaining precision and stability during movement over uneven ground.
- Dual slope functionality enables precise gradient creation, allowing water to flow in both directions—reducing standing water, enhancing soil aeration, and protecting crops from root diseases.
- Ideal for medium to large-scale farms, this model supports long working hours and high-performance demands, improving overall output and farm efficiency.
- The Fighter model boasts a stylish, aggressive design that reflects both power and performance—making it a favorite among progressive, tech-savvy farmers.
Technical Specifications

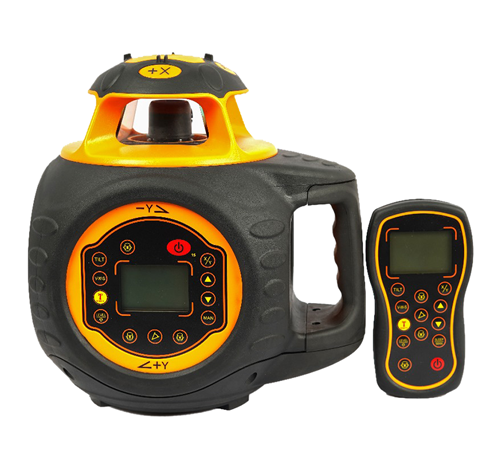

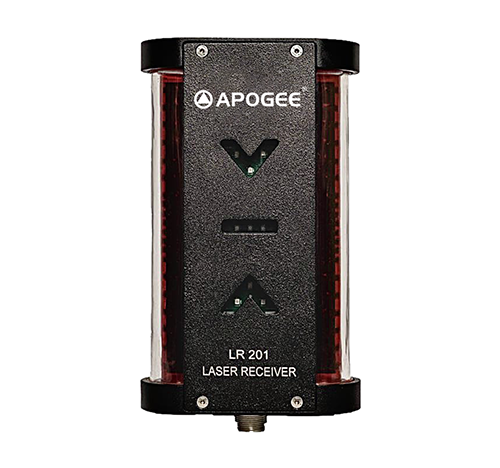

FIGHTER (SPORTS) BUCKET SCRAPPER | HD LASER RECEIVER | CONTROL BOX (CB 200) | D-31 DUAL SLOPE TRANSMITTER |
Weight - 750 kg | Reception Range :360° | Operating Voltage -10-18 Volt DC | Levelling method - Automatic leveling |
Width - 7 feet
| Reception Length :200mm | Updated Technology | Working range - 600m |
Thickness - 8mm / 10 mm | Up/Down Indication LEDs | Ergonomic Design | Accuracy - ±0.05mm/m |
Tractor Requirement - 40 HP and Above | Strong Dual Mounting | Heavy Mounting stand | Auto-levelling range - ±8° |
Tyres - 6-16 SL double |
Glass Protection |
Time Display |
Weight - 4Kg |
Mast – Power/Gear Mast (optional)
| Metal Covering | Connection error messages | Size - 220×200×280mm |
BLADE Length- 84 inches
| Led Indication | Metal Body | Power – 12 V DC Battery
|
BLADE Height - 127 mm
| - | - | IP class – IP66 |
BLADE Thickness - 16 mm | - | - | Output Lines – H-V |
- | - | - | Laser Wavelength – 635 nm |
- | - | - | Diode – Red |
