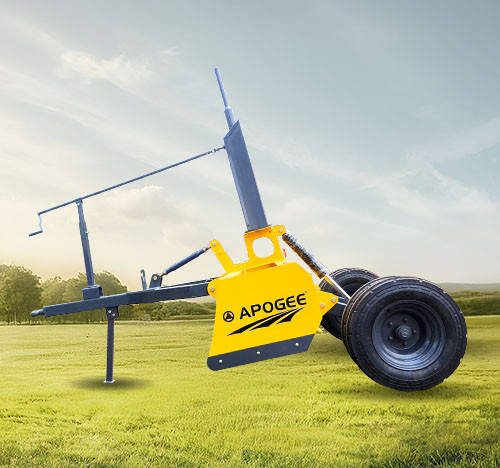

Dual Slope Standard Laser Land Leveller
Apogee Dual Slope Standard Laser Land Levelling Kit is designed to deliver accurate land grading with smart slope management. This professional-grade solution includes the Standard Dual Slope Leveller, high-precision Laser Receiver, programmable Control Panel, powerful Laser Transmitter, and rugged Bucket Scrapper – everything required for modern precision farming.
Features & Advantages
- Equipped with advanced dual slope functionality, this leveller allows precise control of both X and Y axes—ideal for creating gentle gradients for proper drainage or customized field layouts.
- Built from high-tensile steel with excellent structural strength, the Standard model offers durability with a lighter body for easy handling by standard HP tractors.
- Suitable for small to mid-sized fields, the optimized blade width balances field coverage and maneuverability, ensuring consistent performance in various terrain types.
- Enables farmers to design fields with slight inclines for proper water runoff, preventing standing water and improving soil health and root development.
- Dual slope design helps manage water flow naturally—saving irrigation time, reducing water usage, and minimizing erosion risk.
- Fewer passes are required due to accurate leveling and slope control, which leads to significant reductions in fuel use, operator fatigue, and overall farming costs.
Technical Specifications

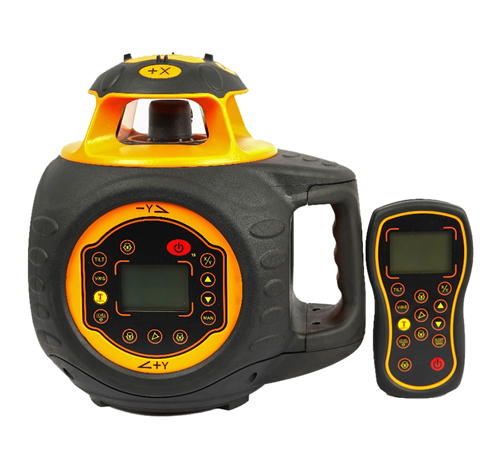

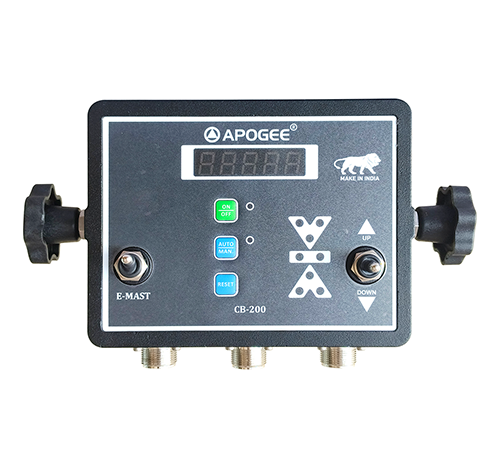

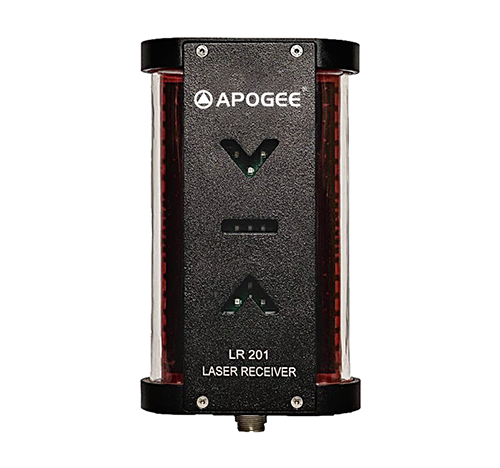

STANDARD BUCKET SCRAPPER | HD LASER RECEIVER | CONTROL BOX (CB 200) | D-31 DUAL SLOPETRANSMITTER |
Rigid structure | Reception Range :360° | Operating Voltage -10-18 Volt DC | Levelling method - Automatic leveling |
Weight - 590 kg | Reception Length :200mm | Updated Technology | Working range - 600m |
Heavy Duty:- 8/10 mm sheet | Up/Down Indication LEDs | Ergonomic Design | Accuracy - ±0.05mm/m |
Tractor Requirement - 40 HP and Above | Strong Dual Mounting | Heavy Mounting stand | Auto-levelling range - ±8° |
Width:- 6 / 6.5/ 7 ft (good for upto 45/50/60 HP tractors consequently.) |
Glass Protection |
Time Display |
Weight - 4Kg |
Tyres - 6-16 SL double | Metal Covering | Connection error messages | Size - 220×200×280mm |
Mast – Power/Gear Mast (optional) | Led Indication | Metal Body | Power – 12 V DC Battery
|
Axle – Straight Axle Available, zig-zag axle not available | - | - | IP class – IP66 |
Tyres - 2 and 4 tyre (options) Available | - | - | Output Lines – H-V |
- | - | - | Laser Wavelength – 635 nm |
- | - | - | Diode – Red |
